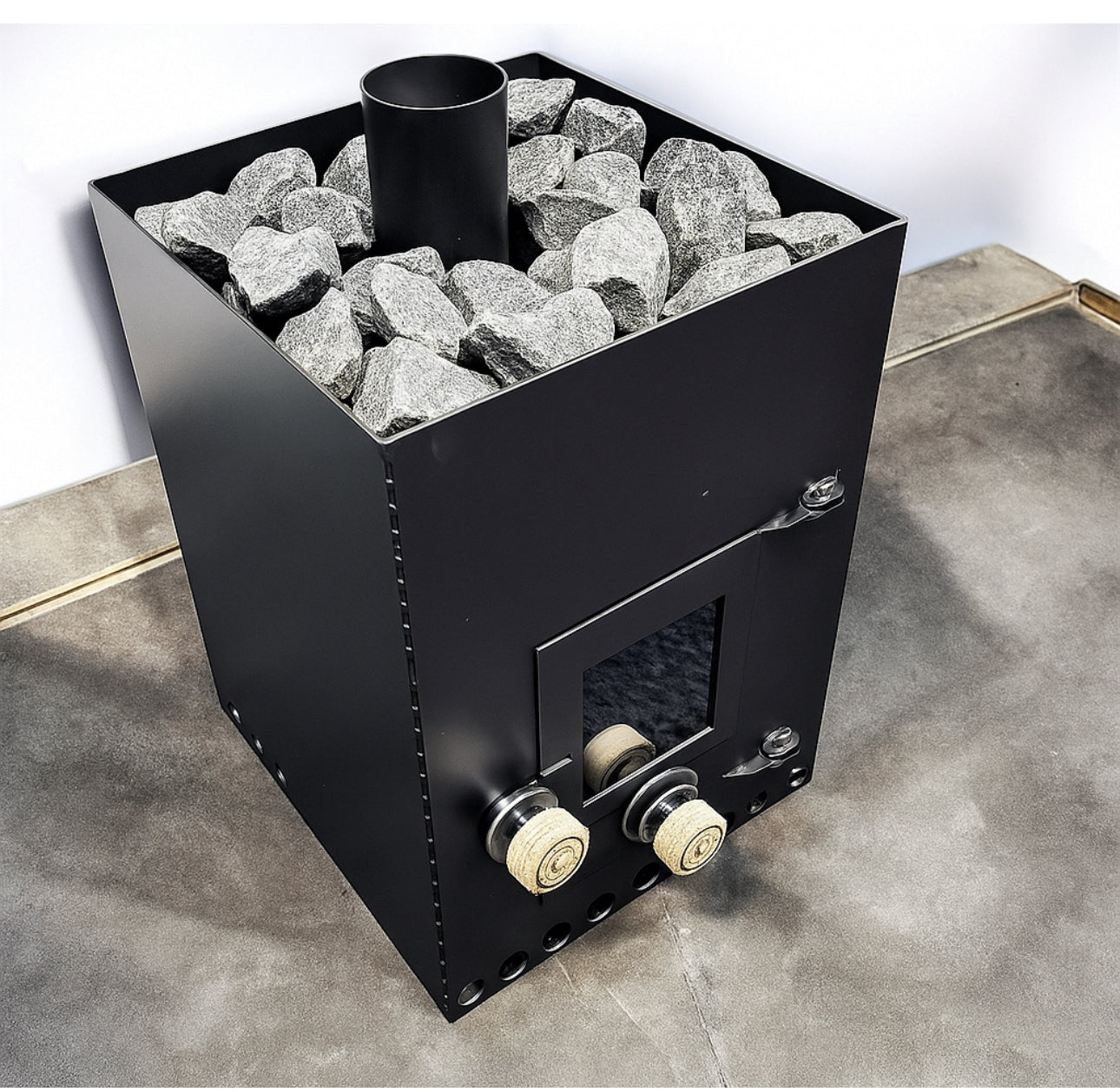

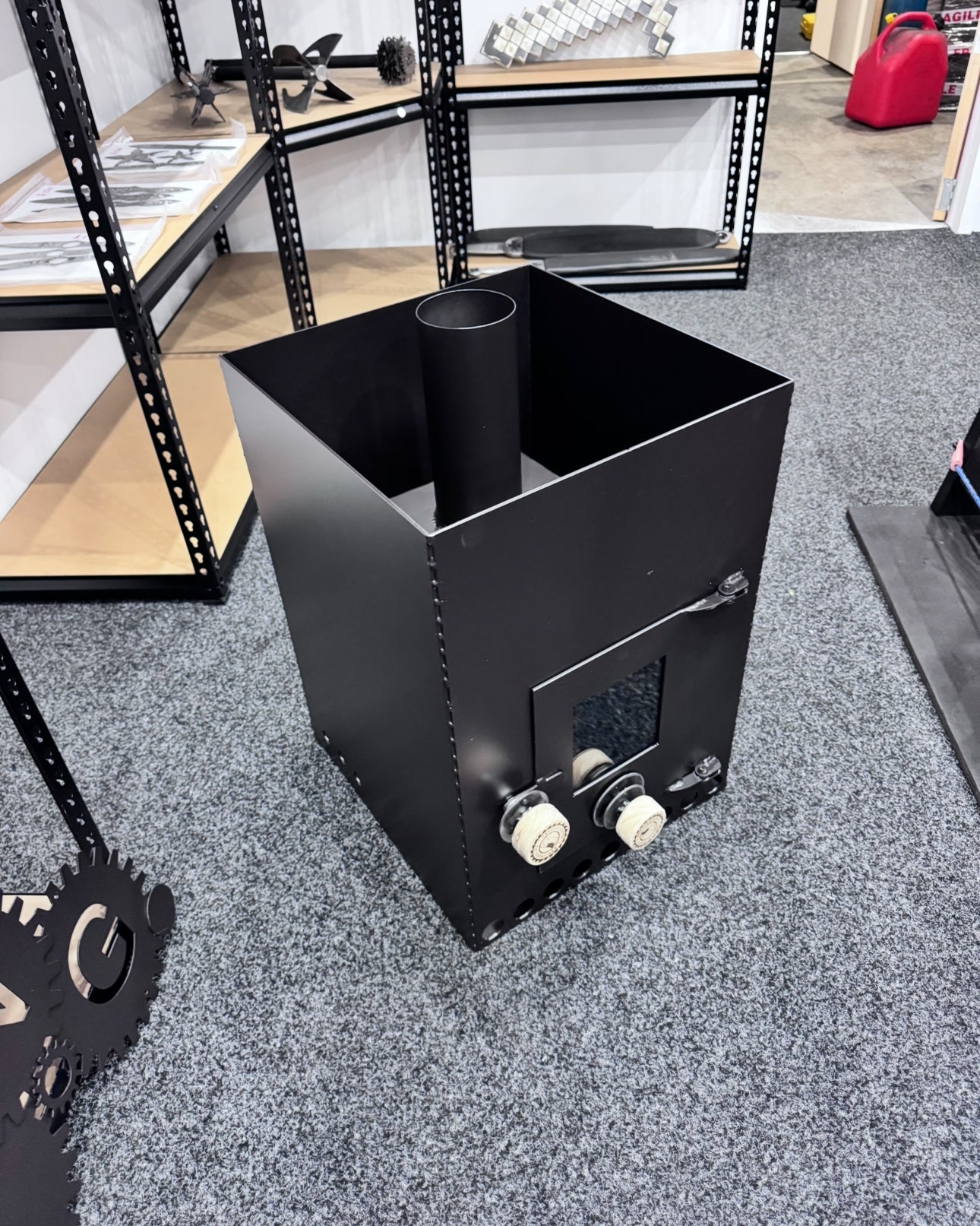

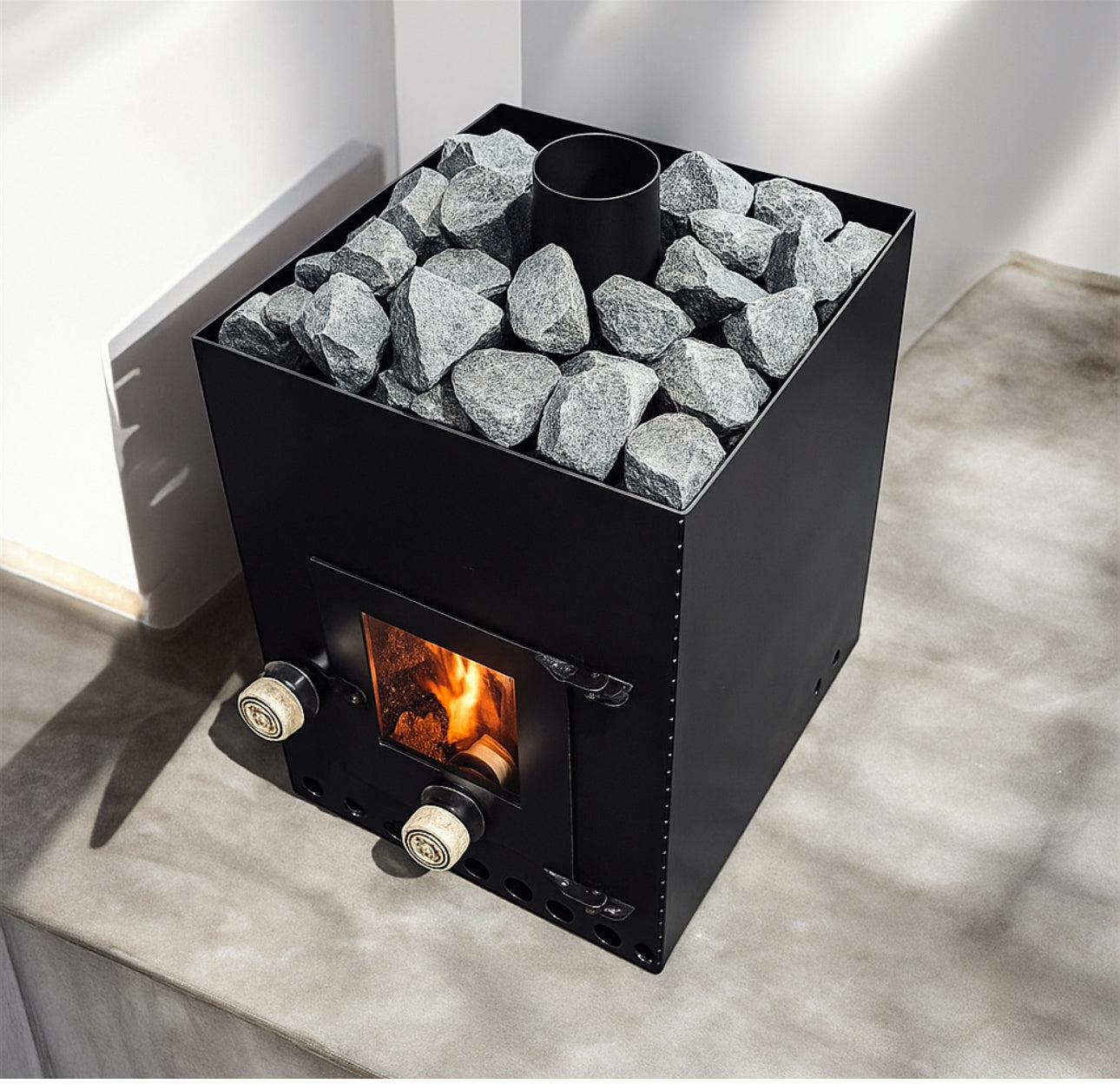

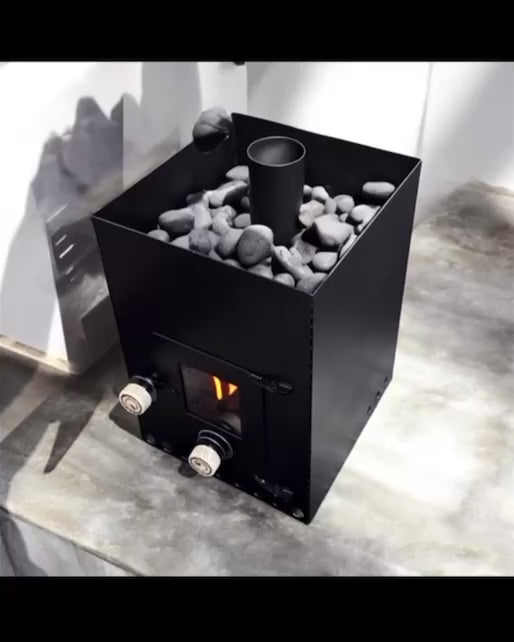

Sauna fire (fully encased in stones)

Around 12KW heat output Great for saunas up to 12 cubic meters
baffle plate.
Airflow adjustment.
Comes finished Bare Corten or in high heat black paint.
Wooden handles (Pine) (painted black)
Tempered fire glass so you can watch it burn away and see when you need to add wood.

Dimensions:
415mm wide x 435mm deep & 600mm high
100mm/4inch diameter flue, sticks out/up 250mm above the firebox & 50mm above the total height ready to hook up, total height with flue is 650mm high

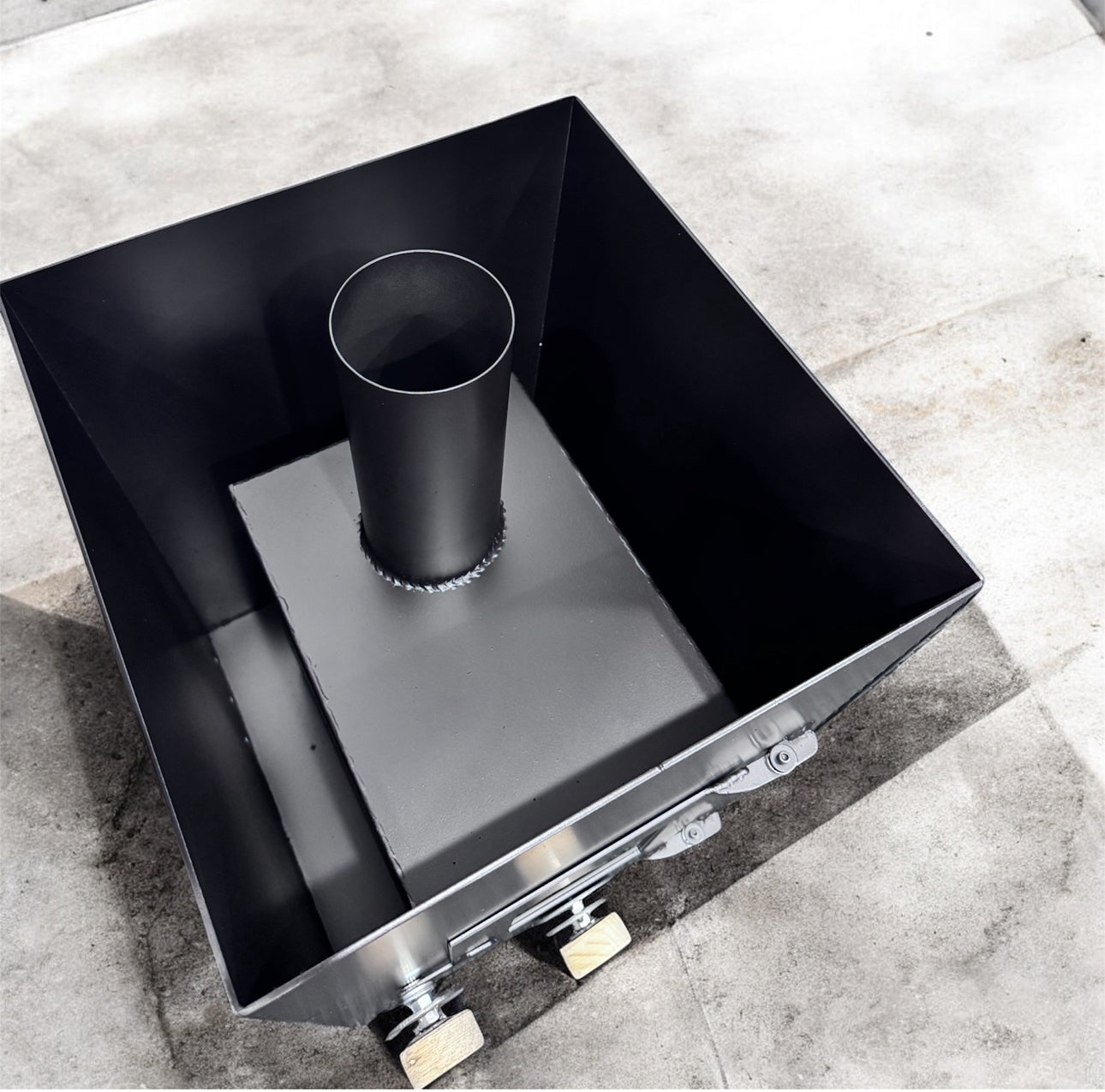

fire box dimensions: 350mm high x 350mm deep x 250mm wide. The firebox also floats 50mm above the bottom of the outer stone box, allowing heat to come from the bottom rather then being lost into the floor, and traveling up through the stones and out of the front of the fireplace minimizing heat loss and maximizing efficiency

weight: 45kgs

stone capacity: fully encased in stones: volume around 35 liters so 80-100 kg of sauna stones, 80mm gaps down the sides and back of the firebox, then fully covering the top & around the flue 200mm above the fire box to the top of the sides, and can be piled up further above the total height around the flue if you want maximum stones, in this case it may take more then 100kgs depending on the type and size of stones you are using.

It is recommended to use burn plates with any fireplaces brought from us, they can be added while checking out.

flue kits also are available for all fires in the fires & fire accessories category, or search up flue kits in the search bar.

We may have 1 or 2 in stock just ask, but if not the turn around time 1-3 weeks depending, it can vary as orders come and go, you can message or call me for accurate time

Awesome mini fires at awesome value, nothing on the market better for even close to the price of these, unbeatable value & quality

Corten steel can last upwards of 100 years without paint, it rusts a thick layer acting better then any paint would, sealing itself from rusting further once fully weather, but we paint it aswell so these should last a few lifetimes, and if you scratch paint off over time you don’t have to worry either,

Like a lot of smaller fires these pull air in from inside the room, we have tested these to work without door & window seals, the slight flow of air that would leak in (so small you can’t see by eye) is the slow speed, so it doesn’t go out when you close the vent right off, saving you money by avoiding adding complicated channels & seals which almost doubles the cost, but there tested & just as safe and nothing can come back out so there perfectly safe for use anywhere with correct installation!

Multi fuel burner/heater, wood and coal (please note for coal you will need to purchase a burn plate that sits in the bottom of the fire so the air can get below and to make the bottom of the fire last longer using hot coal you can also use this for the wood to you can add to cart from the website listings fire accessories)

Made by hand in New Zealand out of thick 3mm Corten steel, AKA weathering steel.

Wetback Aka - Boiler water heater is made from stainless steel, it fits any of the fireplaces, check wetback-boiler listings for full details on that if required. 20mm outlet, male 1/2 BSP g1/2 thread size.

These fires are classed as un tested appliances and therefore are made for places that don't require a permit they are not un tested or un safe, just untested by the official labs (emissions testing) they may still be able to get permitted depending on your councils rules, they are classed as multi fuel heaters so are excluded from the emissions act, but also can be classed as just a wood burner, but as a multi fuel heater they only need to meet building code for permitted installations as per code, but check with your council for there rules as they can differ, but since they are classed as a un tested appliance, they are sold strictly for outdoor use or anywhere a permit isn’t required.
